Walle sealing tandem seal type TDT is designed for use with telescopic cylinders. It can be used with mineral oils or compressed air.

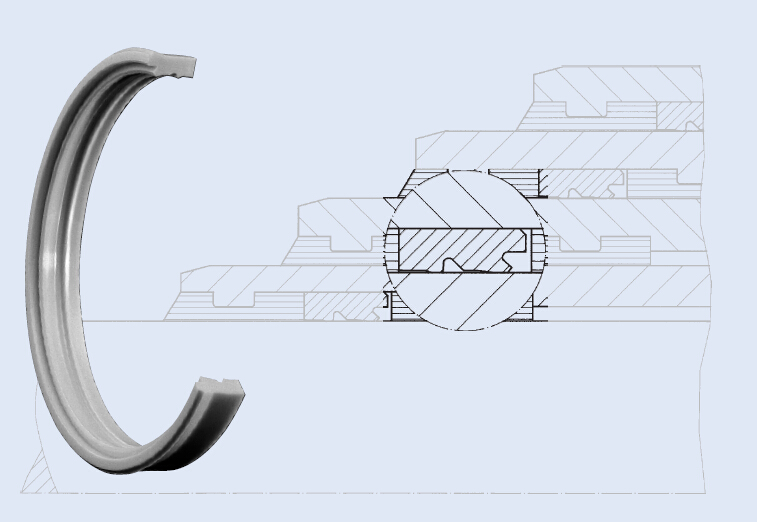

The TDT seal is manufactured in PUR and has two sealing lips on the inside. Prior to fitting, these lips protrude beyond the nominal diameter of the seal. Following installation, seal compression forces the lips against the telescopic cylinder stages, thereby providing a sealing function at zero pressure. Under increasing pressure and compression of the seal, the sealing lips are pressed against the telescopic cylinder
stages. The sealing edge of the second lip produces an annular cavity, where any seepage oil that has passed the first lip is colleced.
The seepage oil is held back by
the sealing edge such that the emerging telescopic cylinder
stages remain dry. During the return stroke, the
collected oil is forced back into the cylinder.
When combined with a surface finish of Ra 0.1 - 0.3 μm
of the running surface, minimum friction levels are
achieved with highly efficient sealing and a long service
life. When used with the Hunger FI type bearings, a simple
and compact construction is possible for all telescopic
cylinder stages.
Application range :
Pressure(bar) : 360
Temperature (C): -35+100
Sliding Speed(m/s):1
Sliding surface: 0.1-0.3
Groove Base : 0.8
Groove sides : 3.2
Fluid : standard hydraulic oils
Standard Materials
PUR
Application
Telescopic cylinders, cylinders with low installation
spaces.
